Providing adjustable hospital beds with rails is fundamental to patient safety, caregiver ergonomics, and clinical efficiency. In modern healthcare facilities—from acute care hospitals to home health environments—standardizing bed dimensions and rail specifications ensures compatibility with patient lifts, specialty mattresses, and room configurations while maintaining regulatory compliance. This comprehensive guide explores every aspect of standard adjustable hospital bed dimensions with rails, serving as an authoritative resource for consumers, designers, and industry professionals.
In this article, you will find:
An Introduction defining key concepts and previewing core sections
Four H2 sections on: bed dimension standards; rail systems and safety features; compatibility with accessories and room planning; and installation, maintenance, and lifecycle considerations
Three tables comparing dimension ranges, rail types, and accessory compatibility
Five real-world case studies illustrating best practices
A Conclusion summarizing critical takeaways and recommendations
A FAQ addressing six common questions about adjustable beds and rails

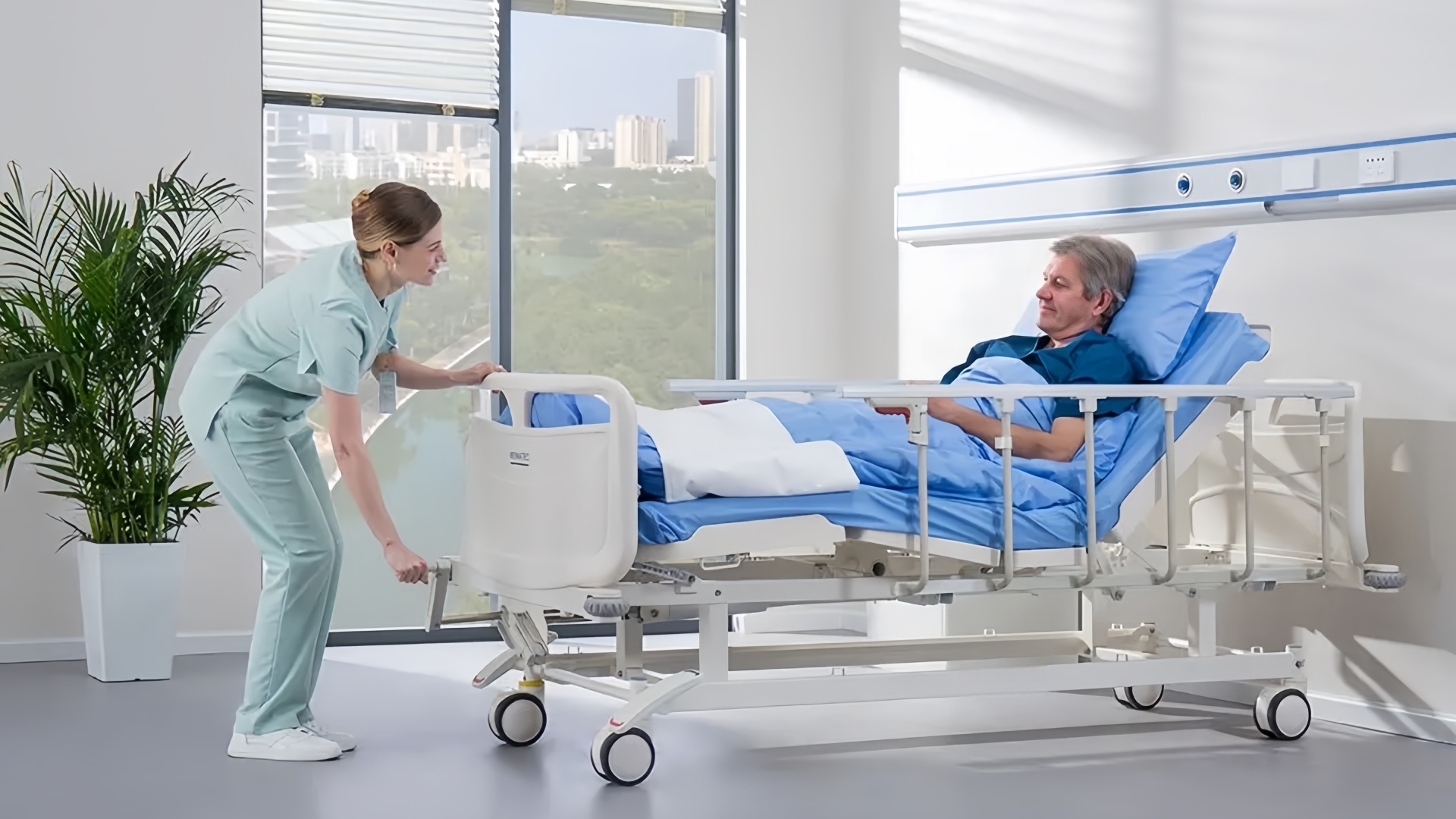

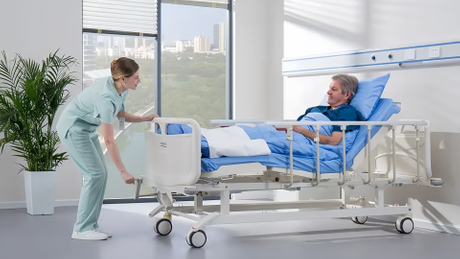

Understanding the standard adjustable hospital bed dimensions is the foundation for product selection, room design, and clinical protocol development. Standard dimensions ensure that beds fit through doorways, align with patient lifts, and accommodate standard mattress sizes.
Width: Commonly 36 inches for standard beds; extended models range from 42 to 48 inches for bariatric needs
Length: Standard 80 inches; extended lengths of 84 to 88 inches for taller patients
Height Range: Adjustable from approximately 16 to 30 inches above floor to mattress top, enabling safe transfers and fall prevention
Total Bed Length: 84 to 92 inches including headboard and footboard
Total Bed Width: 38 to 50 inches including side rails when fully extended
Rail Clearance: 2 inches minimum gap from mattress edge to rail post for patient safety and bedding tuck
Table 1: Standard Adjustable Bed Dimension Ranges
| Dimension Type | Standard Bed | Extended Bed | Bariatric Bed |
Sleeping Surface Width | 36″ | 36″ | 42–48″ |
Sleeping Surface Length | 80″ | 84–88″ | 80–88″ |
Frame Length | 84–88″ | 88–92″ | 88–92″ |
Adjustable Height Range | 16–30″ | 14–32″ | 18–34″ |
Rail-Extended Width | 38–40″ | 38–40″ | 44–50″ |
Standard hospital mattress dimensions match the sleeping surface exactly, typically 36″×80″ or 42″×84″. Mattress thickness of 6–8 inches adds to total bed height for transfer calculations. Ensure mattress locking systems align with frame hooks.
Standard Doorway Width: Minimum 32 inches; frame may swivel for passage
Corridor Width Requirement: Minimum 60 inches to maneuver bed fully extended with rails up
Rails serve multiple functions: fall prevention, assistive support, and attachment points for accessories such as IV poles and monitoring devices. Rail design standardization promotes staff safety and patient confidence.
Full-Length Rails: Extend along entire bed length; provide maximal fall prevention
Half-Length or Three-Quarter Rails: Cover patient torso area; improve access during care tasks

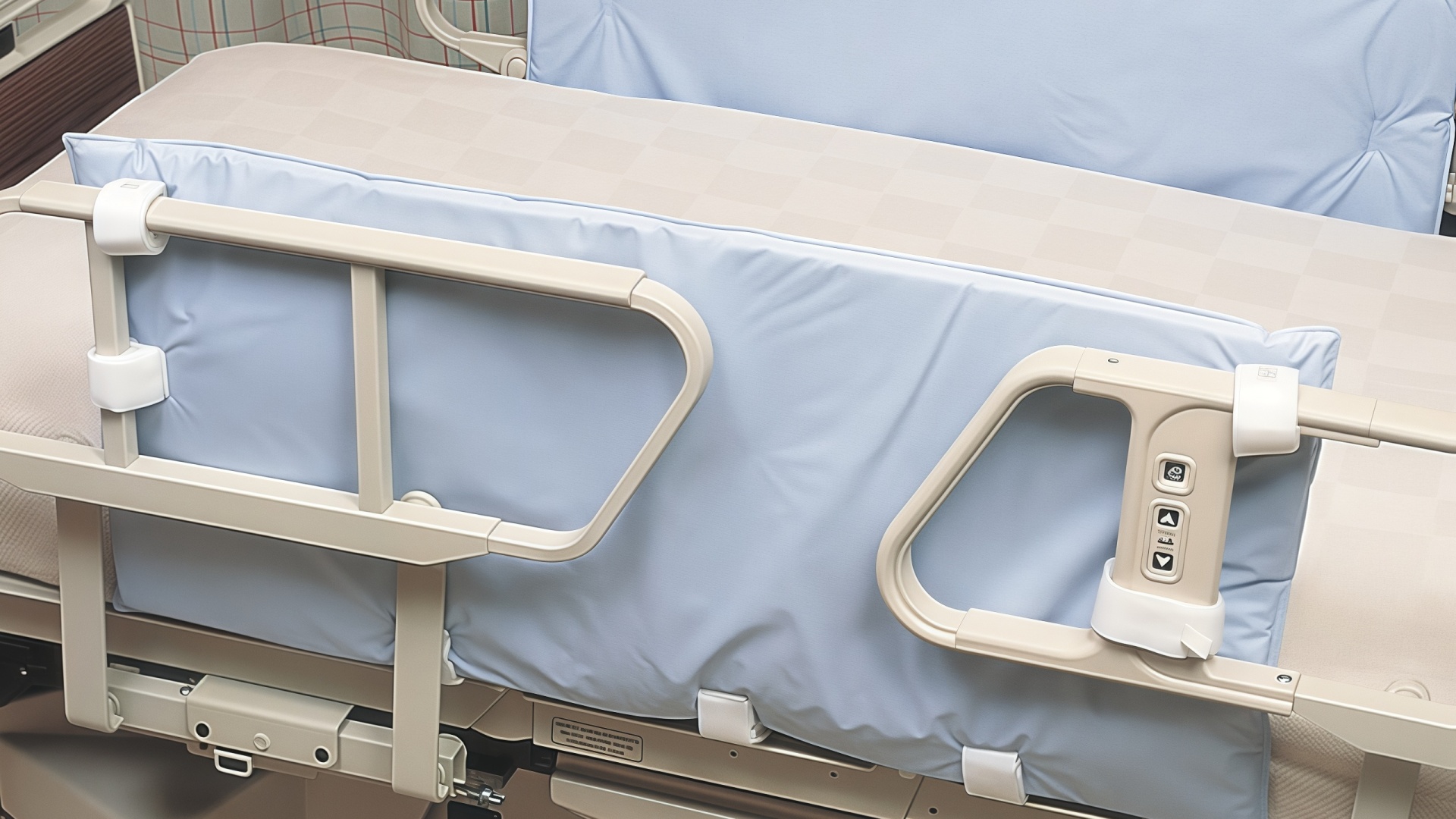

Split Rails: Two separate sections allow partial lowering for egress
Top of Rail Height: 14–17 inches above mattress top to prevent roll-out
Gap from Mattress: Maximum 2 inches horizontal gap to avoid entrapment
Rail Post Diameter: 1.25–1.5 inches for easy grip
Table 2: Rail Type Comparison
| Rail Type | Coverage | Best Use Case | Ease of Access |
Full-Length | 100% of bed length | High-fall-risk patients | Limited side access |
Three-Quarter | 75% of bed length | General care | Moderate access |
Half-Length | 50% of bed length | Ambulatory patients | High access |
Split Rails | Independent halves | Assisted transfers | Variable access |
Auto-Lowering Rails: Lower automatically for egress when bed is raised above a certain height
One-Hand Release: Allows caregivers to lower rails without changing posture
Rail Locks: Prevent accidental lowering or raising
Sunrise standardized on split-rail beds with auto-lowering features. Fall incidents decreased by 30% while staff reported improved patient transfers and reduced manual lifting.
Standard bed dimensions and rail systems support a wide range of accessories and ensure seamless integration into healthcare environments.
Under-Bed Clearance: Minimum 4 inches for horizontal lift spreader bars
Frame Strength: Rated for dynamic loads of at least 600 pounds
Integrated Rail Mounts: Allow easy installation of poles without drilling
Accessory Channels: Built into rail designs to secure devices
Hospital Bedside Table and Overbed Table FitTable Footprint: Designed to slide beneath bed frame; requires 6 inches clearance under side rails
Height Range: 25–37 inches to align with mattress height
Table 3: Accessory Compatibility Requirements
| Accessory Type | Clearance Required | Mounting Method | Notes |
Patient Lift | 4″ under bed frame | Lifting spreader bars | Check rated bed load |
IV Pole | 2″ rail channel | Clip-on mount | Pole height adjustable |
Overbed Table | 6″ under rail clearance | Rolling casters | Locking brake recommended |
Monitor Arm | 1.5″ rail grip | Rail clamp | Cable management required |
Trapeze Bar | Top rail brackets | Rail-mounted bracket | Weight rating 300 lbs |
90° Turns: Minimum 60″ corridor width to pivot bed with rails raised
Side Clearance: 36″ on each side for caregiver access and emergency procedures
Floor Load Capacity: Minimum 200 lb/ft² to support bed and occupant
Evergreen retrofitted rooms to ensure under-bed clearance and corridor widths aligned with new bariatric beds. They avoided costly structural changes by selecting beds with slimmer frames and auto-swivel rails for tight turns.
Ensuring long-term reliability of adjustable beds with rails requires proper installation, routine maintenance, and understanding replacement lifecycles.
Leveling: Adjust leveling feet to compensate for floor irregularities within 1/4″ tolerance
Rail Alignment: Verify rail gap and height after bed setup
Electrical Testing: Confirm emergency stop and backup battery systems
Monthly Inspections: Check rail operation, motor function, and caster integrity
Quarterly Servicing: Lubricate mechanical joints, test rail locks, verify height accuracy
Annual Overhaul: Replace wear items including lifting actuators, battery packs, and re-certify safety features
Expected Service Life: 10–15 years for high-end adjustable beds; 7–10 years for standard models
Warranty Coverage: Typical 5-year frame and motor warranty; optional extended service plans
Refurbishment Programs: Replace moving parts and reupholster rails to extend life by 3–5 years
Northside implemented a preventive maintenance schedule that reduced unexpected bed downtime by 50%. They also partnered with a refurbisher to extend bed service life by 4 years, saving over 30% in replacement costs.
Standard adjustable hospital bed dimensions with rails form the backbone of safe, efficient, and ergonomic patient care environments. By adhering to standardized width, length, height, and rail specifications, healthcare providers ensure compatibility with accessories, facilitate safe patient handling, and optimize room layouts. Routine maintenance and lifecycle planning extend bed service life and protect investments while fostering patient safety and satisfaction.
When selecting beds:
Confirm sleeping surface and frame dimensions align with room design and patient demographics
Choose rail systems—full, half, split—that match fall-prevention and access needs
Verify accessory compatibility for lifts, IV poles, and overbed tables
Implement installation and maintenance protocols to ensure long-term reliability
Factor in lifecycle costs and refurbishment options for maximum ROI
By integrating standardized adjustable beds with well-designed rails, healthcare facilities optimize clinical workflows, enhance patient outcomes, and maintain regulatory compliance across diverse care settings.
Q: What is the ideal rail height above the mattress?
The optimal rail height is 14–17 inches above the mattress surface. This range prevents patient roll-out while ensuring rails are not excessively high, which can impede caregiver access.
Q: Can adjustable beds fit through standard hospital doorways?
Yes, standard beds with 36″ widths fit through 32″ doorways when rails are lowered and headboards removed. Bariatric beds (42–48″ wide) require 36″ minimum clearance or modular disassembly.
Q: How much under-bed clearance is needed for patient lifts?
A minimum of 4 inches under the bed frame is required for horizontal spreader bars. Some lift designs need 6 inches, so confirm with lift manufacturers before bed selection.
Q: What gap should exist between mattress edge and rail post?
Maintain a maximum 2-inch horizontal gap to prevent entrapment risks. Rails should align within 1–2 inches of mattress edges and be secured to prevent movement.
Q: How often should rail mechanisms be inspected?
Perform monthly inspections of rail locks and release mechanisms, with quarterly lubrication and annual safety recertification to ensure smooth operation and compliance with safety standards.
Q: Are there standard lengths for adjustable bed rails?
Yes, rails typically cover full-length, three-quarter, or half-length segments of the bed. Choose based on patient mobility and fall-prevention protocols: full-length for high-risk, three-quarter for general care, and half-length for ambulatory patients.
