Nurse Station Furniture Layouts That Improve Workflow Efficiency And Staff Well-Being

Mounting nurse turnover and increasing patient acuity place unprecedented pressure on care teams. A well-designed nurse station can relieve that strain by shortening task cycles, cutting travel distances, and reducing cognitive overload. When furniture layouts synchronize with ergonomic principles and digital workflows, staff fatigue drops, documentation accuracy rises, and patient satisfaction improves.

This guide delivers a 2025 blueprint for nurse-station planning, focusing on how furniture geometry, sightlines, and modular power/data rails create safer, more efficient work hubs. Four sections cover:

• Core Station Archetypes—ring, linear, and distributed models.

• Sightline & Noise Mapping—quantifying visual coverage and acoustic load.

• Furniture & Technology Integration—bus-powered rails ready for AI medication arms.

• ROI Case Studies & Implementation Roadmap—proving value in real facilities.

Practical tables, workflow diagrams, and five hospital examples turn design theory into action for contractors, architects, and OEMs.

Station Archetypes and Their Performance

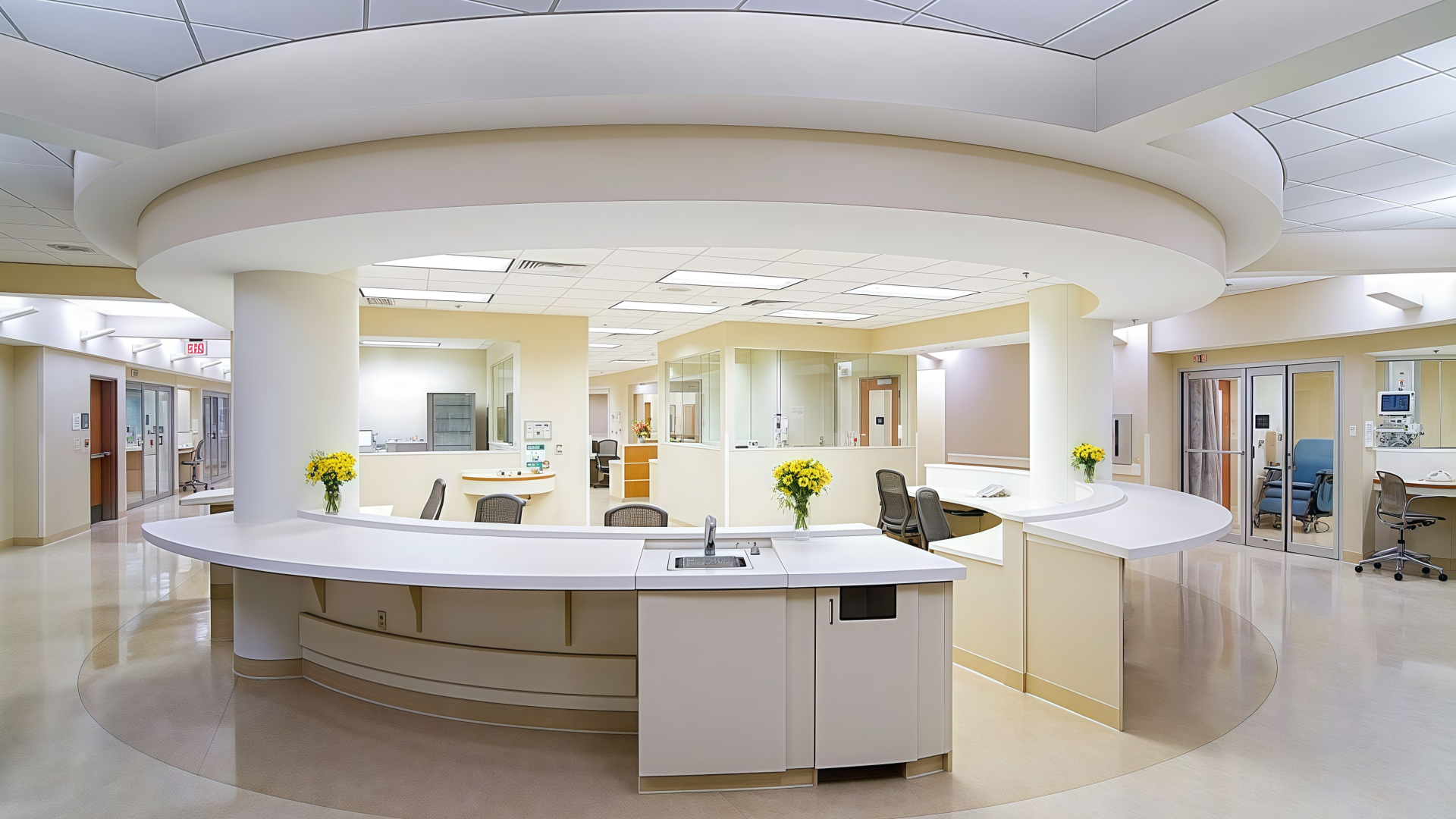

Ring (Circular) Stations

A concentric layout places caregivers around a central documentation core.

Advantages

• 360° patient-room visibility.

• Ultra-short reach to shared supply towers.

• Promotes real-time team collaboration.

Drawbacks

• Requires ≥ 900 ft² footprint.

• Conversations bleed across the circle unless acoustic baffles are installed.

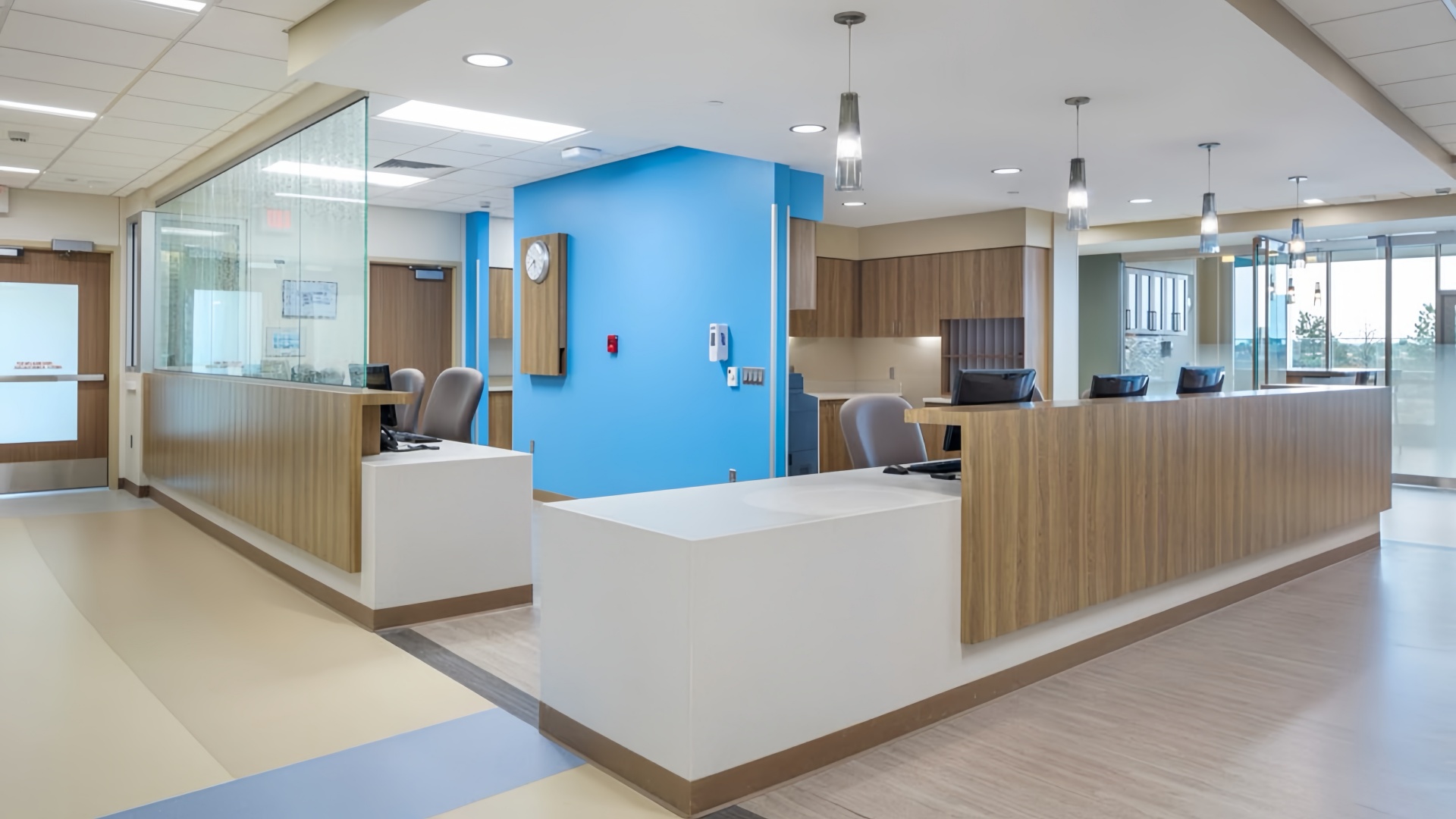

Linear Stations

Desks line a straight corridor or wall.

Advantages

• Minimal floor area (≈ 500 ft²).

• Direct adjacency to patient rooms.

• Easy phased retrofits in older hospitals.

Drawbacks

• Limited sightlines opposite the desk.

• Higher foot traffic through a single aisle increases collision risk.

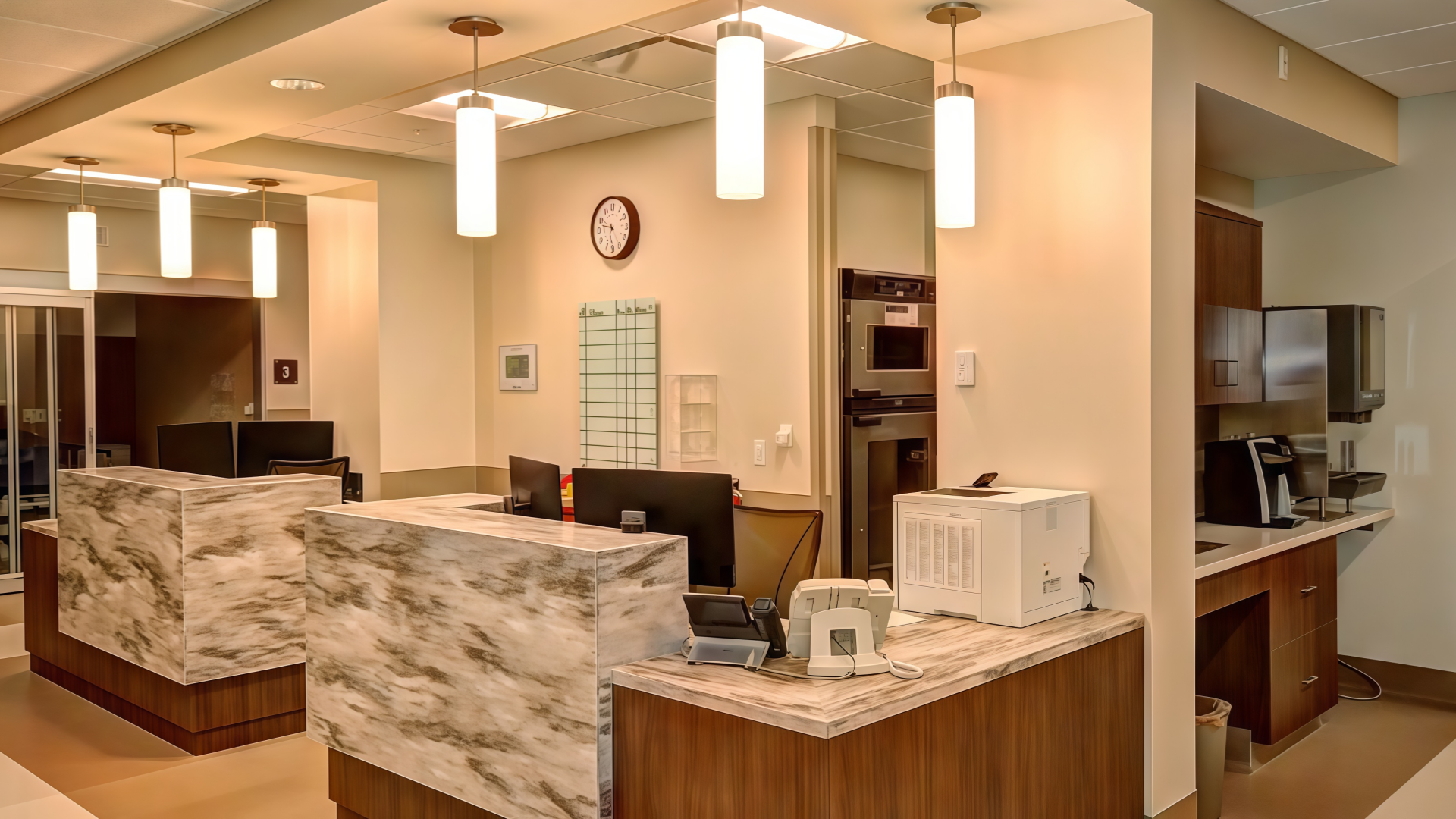

Distributed Pods

Smaller work islands serve 4–6 rooms each, linked digitally.

Advantages

• Reduces nurse travel distance by 40–55%.

• Lowers ambient noise to < 50 dB in pods.

• Supports decentralized care models.

Drawbacks

• Requires robust Wi-Fi and EMR access at every pod.

• Higher per-station equipment cost if hardware is duplicated.

Table 1 – Station Type Performance Matrix

Sightline & Noise Mapping

Visual Coverage

Place desks at 42 in height to allow seated charting while keeping direct eye contact with doorway glass. 120° cone diagrams show that ring stations achieve full room-door coverage with three nurses, compared with five in linear layouts.

Acoustic Zoning

Use sound-absorbing PET panels above transaction counters and micro-perforated ceiling clouds to absorb up to 0.85 NRC. Locate printers and pneumatic-tube drops 12 ft from heads-down documentation zones to maintain sub-55 dB targets set by OSHA 2025.

Table 2 – Acoustic Treatment Checklist

Furniture & Technology Integration

Bus-Powered Work Rails

Install 48 V low-voltage rails atop back panels. Benefits:

• Snap-in power bricks for monitors.

• Future-ready ports for AI med-sorting arms without rewiring.

• Daisy-chain data nodes provide PoE to phones and badge readers.

Ergonomic Worksurfaces

• Sit-stand bridge-desks lifting 24″-48″ in < 12 s reduce nurse lumbar strain.

• 55° chamfered edges prevent wrist compression during charting.

• 3 mm radiused corners meet 2025 OSHA guidance to cut turn-body reach angles by half.

Storage Optimized for Reach

• Pivot-out supply bins within 17″ of seated elbow height.

• Tambour doors glide vertically, eliminating aisle intrusion.

Table 3 – Reach & Posture Ergonomic Specs

ROI Case Studies

Case 1 – Urban ICU (Ring Layout)

After installing a circular station with height-adjustable counters and PET baffles:

• Documentation errors dropped 23%.

• Nurse turnover fell 12% within one year.

Case 2 – Rural Telemetry Unit (Linear Retrofit)

Added sound-absorbing desk screens and 48 V rails on an existing linear station:

• Average charting time per med pass fell 9 minutes.

• Patient call-light response improved 28%.

Case 3 – Pediatric Pod Rollout

Distributed pods reduced nighttime noise by 14 dB. Parental satisfaction grew to 94% in post-discharge surveys.

Conclusion

The right nurse station furniture layout blends geometry, acoustics, and modular technology to advance both workflow efficiency and staff well-being. Ring stations excel in high-acuity visibility; linear counters fit tight footprints; distributed pods minimize walking and noise. Pair any configuration with height-adjustable desks, PET sound panels, and 48 V power/data rails to future-proof against AI automation.

Action Checklist

1. Conduct a sightline audit using 120° cone diagrams.

2. Map noise hotspots; target < 55 dB at charting areas.

3. Choose station archetype aligned to acuity and floorplate.

4. Specify sit-stand worksurfaces and chamfered edges per OSHA 2025.

5. Install bus-powered rails to eliminate rewiring when tech evolves.

6. Validate ROI through pilot KPIs: walking distance, error rate, satisfaction.

FAQs

1. Which station shape minimizes nurse walking distance?
Distributed pods reduce average shift travel to 1.3 miles, nearly half that of linear stations.

2. Do height-adjustable counters add significant cost?
They increase unit price ≈ 15%, but lower musculoskeletal claims and overtime, yielding payoff in 14–18 months.

3. How can I retrofit AI-ready power without trenching walls?
Install 48 V modular rails mounted to desk backs; they deliver PoE and low-voltage power via quick-connect jumpers.

4. What desk surface color best reduces glare?
Low-gloss white laminate (GU ≤ 0.5) diffuses overhead LEDs while aiding medication-inspection contrast.

5. How often should acoustic panels be cleaned?
Vacuum weekly and deep-clean quarterly with EPA-listed disinfectant compatible with PET fibers.

6. Does adding PET desk screens impede collaboration?
Screens 16″ high block noise without obstructing eye contact when aligned 24″ apart; transparency inserts maintain team visibility.
